Steel strapping tools
Packaging aid with battery operation

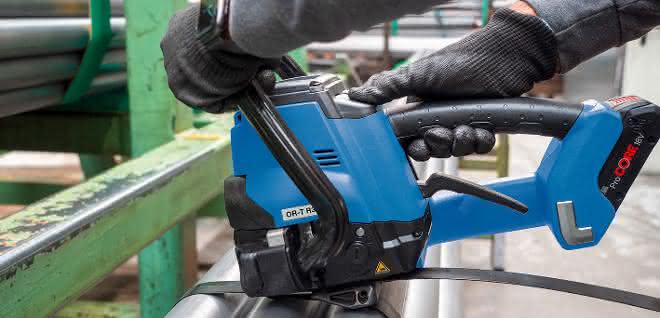

As an alternative to pneumatic tools, Kemapack is launching the OR-TR series of steel strapping tools, which are powered by Li-Ion batteries.
They are suitable for both mobile and stationary use and are particularly robust. The OR-TR19 model has a tensioning force of between 400 and 3,000 N, a tensioning speed of 135 mm/s and can process steel straps with widths of 13, 16 and 19 mm. The straps are locked using a single notch.
The OR-TR32 has a clamping force of 2,000 to 7,000 N at a clamping speed of 75 mm/s. It can process steel strap widths of 19, 25 and 32 mm. It is locked via a double notch in the steel strap. The electronically controlled strapping process guarantees precise implementation of the tension and seal settings on both device variants. The touch display can also be operated with safety gloves.
