Improved operation

User interface logos

14.08.2019, 13:53

Improved operation

AP&T has developed a new generation of control systems that simplify the use of presses, automation and production systems. This upgrade entails a renewal of the Logos user interface as well as improvements in functionality and hardware.

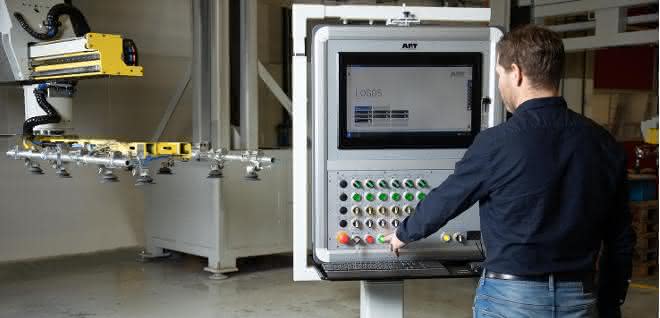

Among other things, the Logos user interface has been upgraded with modern graphics and widescreen displays. © AP&T

Operators now have a 22-inch display with full HD quality on the stationary PC units and monitors and seven inches on the hand-held control units. The graphics with typical AP&T identity are designed to provide a clear picture of the information displayed and make navigation easier. This applies, among other things, to the so-called alarm display, which provides a quicker overview of the machine status. pb
