Jakob spring clamping cylinder
Securely clamped
With the hydromechanical spring clamping cylinders of the ZSF series, Jakob Antriebstechnik offers robust and reliable clamping elements.
The spring clamping systems can be used wherever sliding or moving machine parts need to be temporarily clamped or locked. Further applications can be found in fixture construction and for workpiece and tool clamping.
The spring clamping systems from Jakob Antriebstechnik work in a mechanical-hydraulic interaction. The clamping force is applied mechanically by a pre-tensioned disk spring assembly. The hydraulics are only required for the release stroke of the elements, which releases the tie rod or pressure bolt. The system ensures a high level of operational reliability, as the clamping force is always maintained regardless of the oil pressure or leakage losses. Due to the short operating times of the hydraulic unit, the system works very economically. The acquisition costs are low and operation is simple.
You might also be interested in

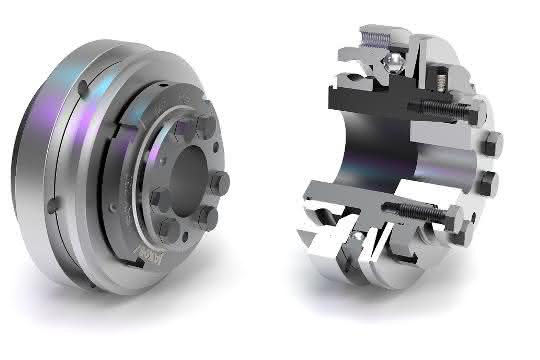

For high release torques
With the Sky type, Jakob Antriebstechnik offers a safety clutch for indirect drives for overload limitation and collision protection that meets the latest requirements.
read more...Metal bellows clutch from Jakob

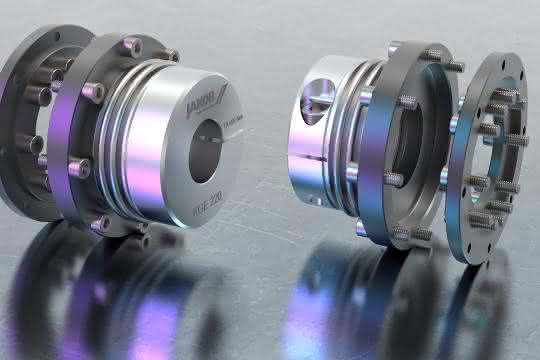

Compact design with robust construction
