Precise in three stroke lengths

Linear slide

30.10.2018, 13:48

Precise in three stroke lengths

The LSM-3 pneumatic linear unit from Friedemann Wagner is a precise and repeatable mini linear slide for the pneumatic automation of small workpieces.

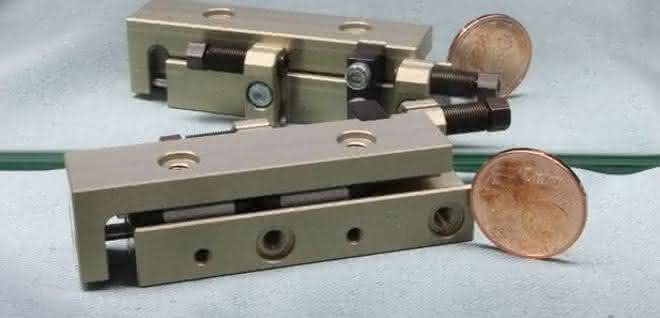

The LSM-3 mini linear slide in mirror image - with stops and 2 guide carriages. © Friedemann Wagner

The load to be moved is safely guided and supported by two carriages (sealed recirculating ball bearing guides). Hollow, hardened stop screws reproduce the repeat accuracy of plus/minus 0.01 millimetres and are also used to hold the sensor. These external stops can be used to adjust or influence the stroke by 15 millimetres on both sides. The mini unit is available in three stroke lengths (20, 35 and 50 millimetres) and with or without mounted shock absorbers. The recommended payload of 0.5 kilograms is around five times its own weight. as
