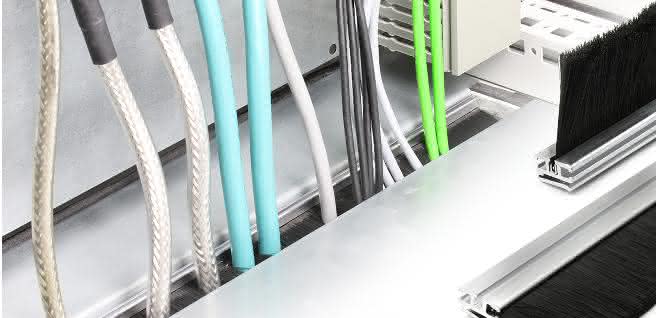

Enclosure base entry
Cable aperture with brush strip
The new KDR-BES-U from Icotek is a cable aperture with brush strip for the base of the enclosure.
It was developed for individual cut-outs on the control cabinet, IT cabinet or in the machine wall. The system is available with a brush depth of 50 millimetres and complements the existing 35 millimetre version. The cable aperture can also be mounted at a 90-degree angle on folded sheet metal. The enclosure base entry is suitable for sheet thicknesses of 1.5 to two millimetres or 2.5 to three millimetres.
The brush can be removed from the aluminum profile at any time and reassembled to any other mounting variant. The KDR-BES-U brush strip can be adapted to almost all standard base plates from various enclosure manufacturers. This means that the new enclosure base entry is also compatible with the latest enclosures, such as the Rittal VX25.
The base plates supplied by the enclosure manufacturer do not need to be replaced, but are used to mount the brush strip. The mounting variant can be changed by the user at any time. Individual lengths are available up to a maximum of 1,500 millimetres. as
You might also be interested in
M25 im hygienischen Design
Die KEL-DPZ in runder Bauform haben ein integriertes metrisches Gewinde von M25 bis M63. Icotek erweitert sein Sortiment um die metrische Standardgröße M25.
read more...Teilbar, aber dicht

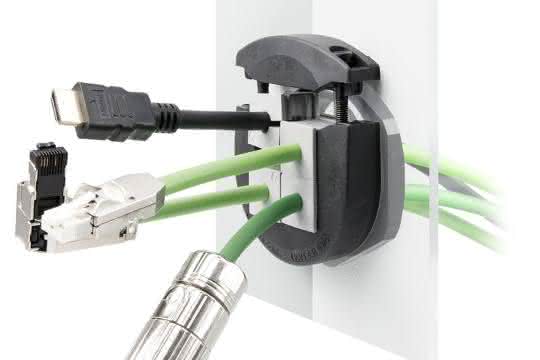

Teilbare Kabelverschraubung. Icotek stellt eine weitere Größe der neuen KVT-ER-Baureihe vor. Die Kabelverschraubung wird nun zusätzlich in der metrischen Standardgröße M25 angeboten. Sie dient zur Einführung von Leitungen mit und ohne Stecker.
read more...Gut abgeschirmt

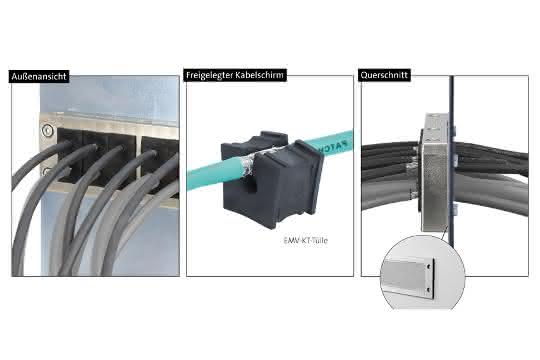

Icotec präsentiert seine neuen Kabeleinführungsleisten EMV-KEL-U und EMV-KEL-E. Ihre Rahmen sind hochleitfähig metallisiert, zusammen mit Kabeltüllen des Typs EMV-KT gelingt es, schirm- und feldgebundene Störungen effizient abzuleiten.
