Presetting device
Measuring system with 400 mm travel

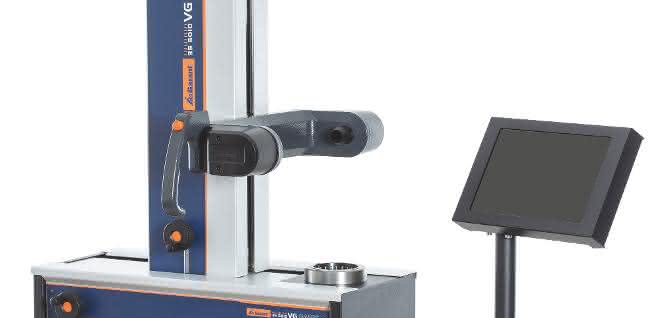

The Garant VG Basic presetting device from the Hoffmann Group is used as basic equipment on the machine or production island.
The presetting device for cutting tools is equipped with a 10-inch touchscreen, three USB ports and an optional label printer. The X and Z axes are moved up to 400 mm via a pneumatic quick adjustment. A fine adjustment helps with exact positioning. The measuring system is based on a CMOS color camera with 17x magnification.
The measurement result is displayed in either millimetres or inches. The scope of delivery includes a cutting edge cleaner, SK 50 needle bearing cone and a spiral compressed air hose as well as a ¼-inch coupling plug. The base body of the Hoffmann Group presetting device is made of high-strength aluminum and the feet are height-adjustable.
