GripperGripper jaws are technical fingertips
Gripper jaws are the part of a clamping gripper that makes direct stereomechanical contact with the gripped object. However, it is often not just clamping, but a combination of force and shape pairing.
Page [4 of 4]
 | | | Image 4 of 4 | | | |

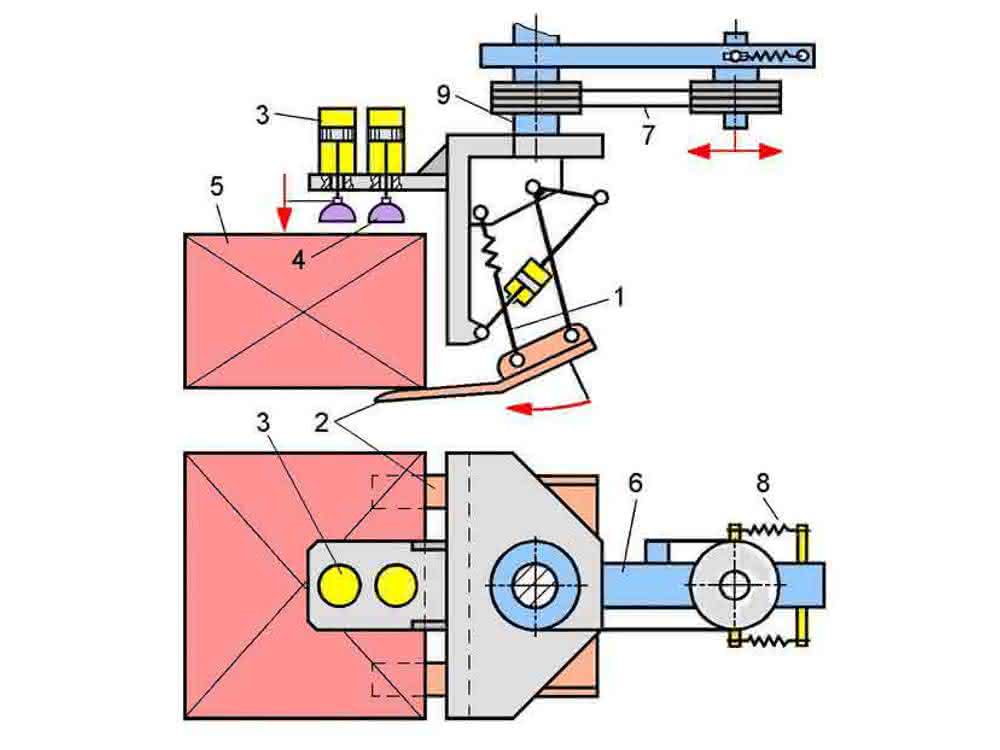

Figure 4: Carton gripper. 1 Compensation rod, 2 Pick-up fork, 3 Pneumatic cylinder, 4 Pressure plate, 5 Gripping object, 6 Arm of the handling device, 7 Supply lines, 8 Tensioner for lines, 9 Swivel joint axis
