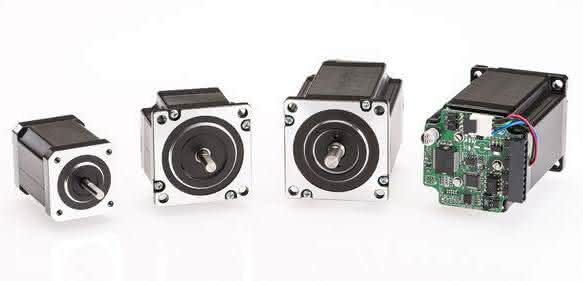

KannMotion servo system
For the maximum output of the stepper motor
Koco Motion presents a new version of the "KannMOTION" servo system. Previously, the servo drive was offered in the flange sizes Nema 17, 23 and 24 with torques from 0.4 to 3.0 Nm.
In addition to 24 V supply voltage and 2 A phase current, the new version now also offers 48 V and up to 10 A for the maximum output of the stepper motor. Stable torque over a wider speed range, significantly more dynamic behavior and implementation in other sizes such as Nema 34 should be possible with the new performance. According to the manufacturer, the fully programmable integrated closed-loop drive consisting of a stepper motor with integrated encoder and a directly attached controller can be programmed easily and intuitively. This is particularly interesting for decentralized stand-alone solutions without complex higher-level controllers. The digital inputs and outputs already on board as well as an analog input can be fully integrated into the program sequences. The individual adaptations of the hardware and software for customer projects are typically based on 80 percent standard modules. The concept is particularly suitable for customer-specific solutions, even for small series. sw
You might also be interested in
Zuverlässig im Dauerlauf

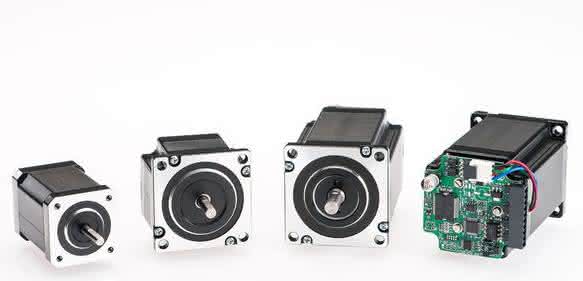

In einer Kooperation haben der Elektronikspezialist Adlos und der Antriebsspezialist Koco Motion das neue Servosystem Kannmotion entwickelt. Dieses besteht aus einem Schrittmotor mit integriertem Encoder und einer direkt angebauten Steuerung.
read more...Eisenlose Schlankmacher

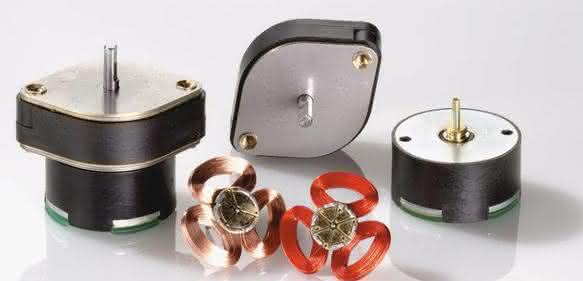

Die Miniaturisierung von Geräten und Anlagen ist ein Trend der Integrated Industry und wird immer weiter vorangetrieben. Auch die Antriebstechnik macht vor dieser Entwicklung nicht Halt. Die Anwender sind immer mehr gezwungen, optimale Lösungen zur...
