Multi-force cylinder
The power alternative

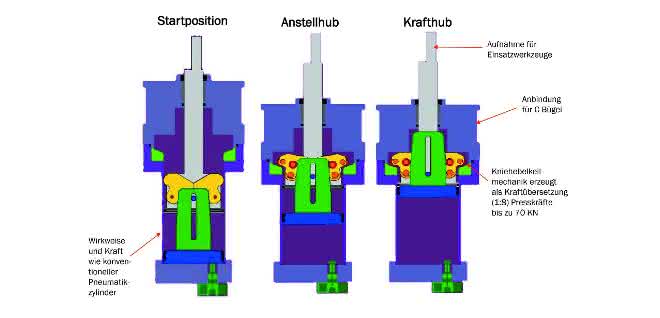

With a pressing force of up to 80 kilonewtons, this cylinder is recommended as an alternative to conventional hydraulic systems. It converts the toggle clamp principle into linear movement. In the end position, the cylinder acts on a toggle lever/wedge mechanism and thus generates a force amplification of up to one in ten. It is suitable for various applications such as embossing, clinching, punching nuts or hole punching. Versions are available in round and flat cylinder designs, as well as various options for push rod adapters and aluminum or steel housings with multiple mounting surfaces. An anti-rotation lock and additional precision guide for the push rod can also be integrated as an option. A locked version is also available. pb
