These are essentially the assembly of the mounting rail, the cable assembly and the labeling of the components and control cabinet. Weidmüller provides fast, reliable and consistent marking systems for this purpose under the MultiMark and MultiCard names. Insert labels, labels or shrink sleeves can be marked quickly and individually using the modular thermal transfer printers in the MultiMark series and the M-Print Pro configuration software. From one-off productions to large print quantities, markings of all kinds can be created extremely economically and without compromising on quality - easily legible and resistant to environmental influences. Many mounting rail components are already equipped with holders into which markers or signs can simply be clipped or snapped.

But no enclosure manufacturer can do without the universal use of self-adhesive labels. THM printers can be used to create self-adhesive labels for devices and components. This ensures clear, structured, unambiguous and legible labeling and the associated uniform appearance.

However, one problem remains: In contrast to the snap-on markers, labels
labels have to be manually removed from the carrier film and applied to the
components. Ideally, a pair of tweezers should be
at hand. However, this is usually done "by hand" in the literal sense of the word or with
a misused screwdriver. The work is laborious
and time-consuming, but the result is not always convincing. Often
The label is often crooked, creased or protrudes beyond the edge of the appliance.

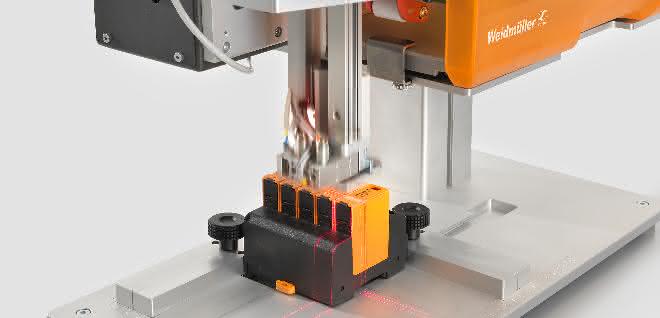

As a sustainable solution to this problem, Weidmüller has developed the THM
MultiMark LPC (Labeling Processing Center) for automatic component
component labeling. With this unique system
equipment labels are immediately positioned correctly,
printed and applied. The new high-performance applicator automatically lifts the
automatically lifts the label from the carrier material and attaches it reliably.
The process is suitable for most component geometries. The
components can have a height of up to 120 mm. This
even larger devices can be reliably labeled.

The labeling process is kept very simple. To ensure correct
correct positioning, a laser integrated as standard projects the label outline
the label outline onto the product surface without distortion.
product surface. The print and apply process is then started via a foot switch.
application process is started via a foot switch. The process is extremely ergonomic,
because the user can hold the component comfortably and precisely in the desired
the component with both hands comfortably and precisely in the desired position.
position. The actual labeling process only takes approx. 3-5 seconds,
The manual application of the label takes approx. 15-20 seconds.
seconds.

The repeatability is also supported by ergonomic measures
supported: Thanks to adjustable stops on the base plate, similar
components can be marked even faster.

Like all printers in the Weidmüller MuliMark series, the THM
MultiMark LPC can be configured using the M-Print Pro software. It is
compatible with various data formats and interfaces to eCAD systems
systems and has a practical import function.
The graphical user interface makes operation easy. Even
graphics, barcodes and symbols can be easily combined with text.
combined with text. Complex project tasks can be clearly managed in a
clearly organized in a project file.
