AMB 2022CNC machining in large format
Two Swiss companies designed the world's largest mobile CNC machining center for the revision of power plant components with contours of up to 8,000 mm. The automotive and industrial supplier Schaeffler was responsible for designing the sophisticated bearing technology.
Page [1 of 3]
 | | | Image 1 of 3 | | | |

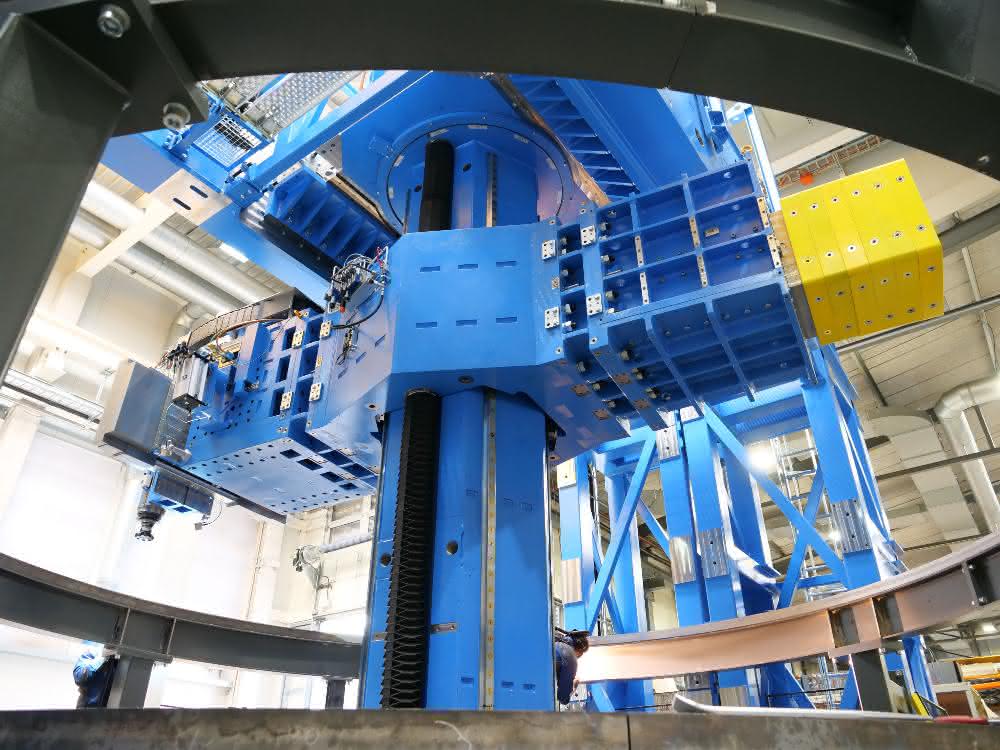

On the left a high-torque geared milling spindle, on the right in yellow the counterweight. The recirculating roller units and a support distance must also transmit the enormous torque of 27,500 Nm © Schaeffler, Bunorm, Wysshus Engineering
