Clamping coupling for rotary swivel tablesAngular accuracy at thousandths level
One of the highlights of Ringspann's appearance at this year's EMO was the new clamping coupling for fixing driven rotary/tilt tables in multi-axis machining centers, a mechanical-hydraulic high-precision solution with high angular accuracy and holding torques of up to 2,400 Nm.
Page [2 of 2]
 | | | Image 2 of 2 | | | |

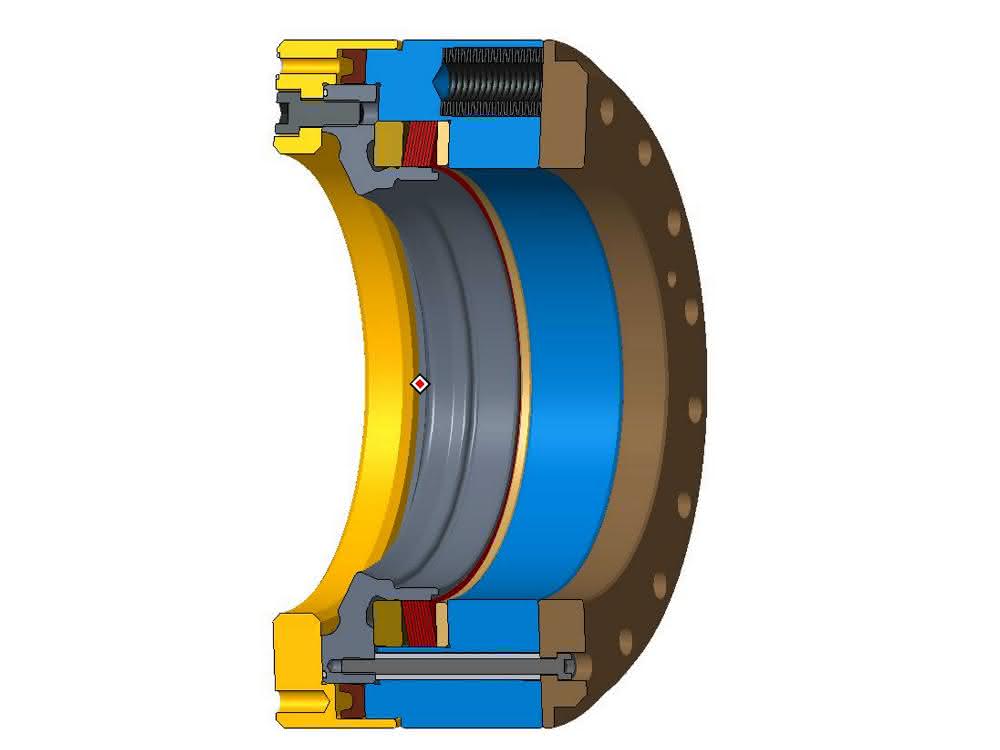

The clamping clutch has a maximum torsion angle of just 0.007 degrees and a holding torque of up to 2,400 Nm. © Ring tension
