Rotary modulesA swivel over swivel units
Pneumatic swivel units convert the linear movement of the pistons into a rotational movement. The handling units rotate slightly more than 180 degrees to provide degrees of freedom for installation and assembly.
Page [1 of 1]
 | | | Image 1 of 1 | | | |

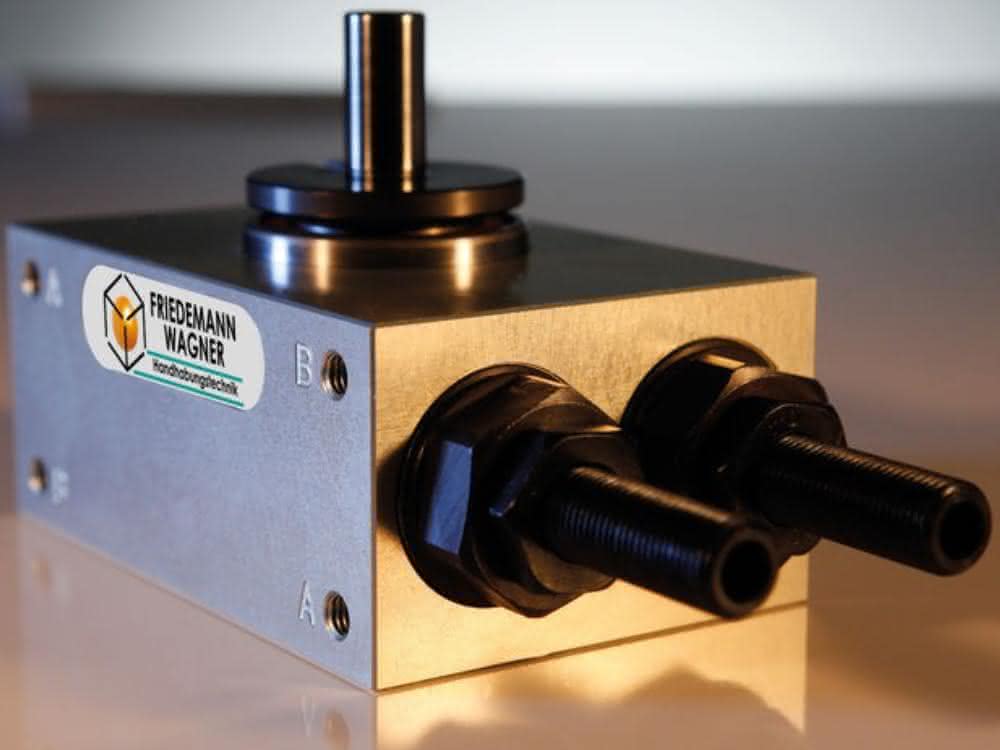

With module She-N, the angle of rotation is controlled directly on the rack by means of a stop. © Friedemann Wagner
