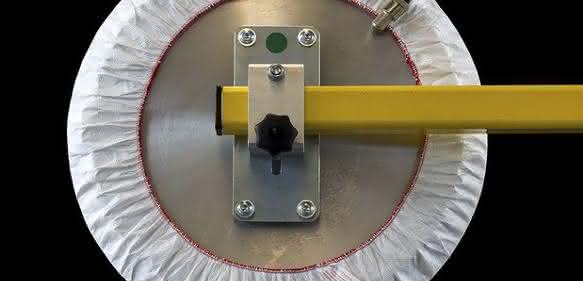

The new vacuum lifting device eT-Hover-univac-line is named after its linear suction plates. Equipped with four suction cups from the BSP 400 RL series, the device is suitable for vertical and horizontal transportation of flat, vacuum-tight sheets of sheet metal, glass, wood or plastic. Panels weighing up to 360 kilograms can be lifted vertically and up to 500 kilograms horizontally.

The manual rotation function enables an endless rotation range in both directions, and the lifting device can be swiveled up to 90 degrees. The most important functions can be controlled via a radio remote control. Thanks to its 2-circuit system, the eT-Hover-univac-line is designed for use on construction sites.

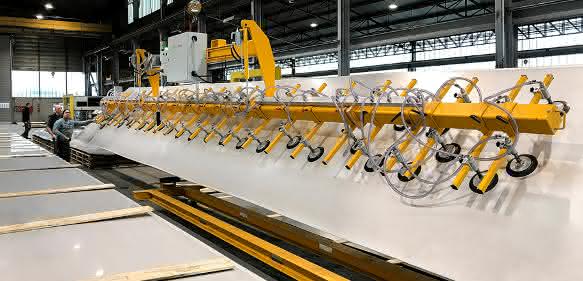

The lifting devices in the eT-Hover-loop series allow loads to be turned 180 degrees quickly and easily. © Eurotech

Turning 500 kilograms through 180 degrees
Another exhibit visitors can discover is a lifting device from the eT-Hover-loop series. The lifting devices from the eT-Hover-loop series are used when flat loads of up to 500 kilograms need to be turned. The lifting device allows loads to be turned 180 degrees quickly and easily. This not only saves the energy of at least two employees who would otherwise be needed to turn the load, but also protects their backs. Using a linear drive, the device turns flat, vacuum-tight sheets of sheet metal, glass, wood or plastic with dimensions of 3.5 by two to 14 by two meters.

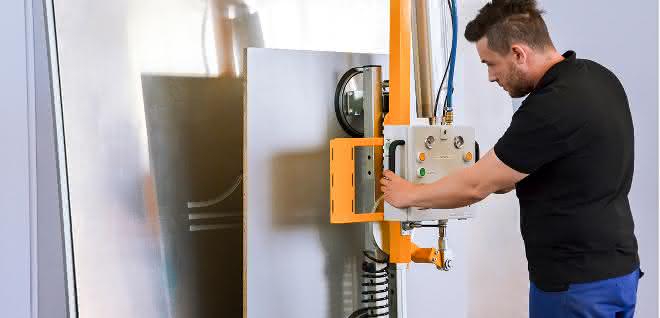

The third lifting device in the group comes from the eT-Hover-modesty series. The lifting devices in this series are suitable for lifting vacuum-tight, flat loads such as metal sheets, glass panes and plastic or wooden panels weighing up to 150 kilograms. The devices in the series are kept very simple and serve as cost-effective alternatives to similar devices with more extensive equipment. The appliance can be rotated and swiveled manually, but can also be rotated pneumatically as an option. This makes it suitable for loading and unloading from warehouses or processing machines.

All Eurotech lifting devices are equipped with several safety and warning devices in accordance with DIN EN 13 155 to prevent operating errors and hazards. as

Hall 15, Stand A02
