Integrated encoder with line driver
Miniaturization of encoders

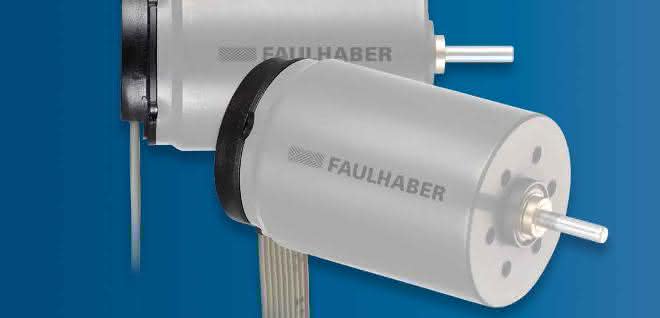

Faulhaber launched the new IEH3-4096 L with Line Driver at SPS IPC Drives 2018 as a continuation of the existing portfolio of integrated encoders, taking miniaturization to the extreme.
The existing products IEH2-4096 with 2 channels and IEH3-4096 with an additional index channel are already highly compact. Integrated into the precious metal commutated DC-micromotors of the SR series, they extend the motor by just 1.4 mm. In the same installation space, the IEH3-4096 L now combines yet another function: a line driver for interference-free transmission. With longer cable lengths or electromagnetic interference in the application, the line driver still enables reliable transmission of the encoder data.
The new encoder supplies the quadrature signals A and B as well as the index channel as complementary square-wave signals in a space of just 1.4 mm. According to Faulhaber, with a resolution of up to 0.022 degrees and a line driver, it is a leader in its class in terms of compactness. The IEH3-4096 L can be combined with DC micromotors from the SR series with a diameter of 15 to 17 mm and with DC micromotors from the CXR series with a diameter of 13 to 17 mm and is compatible with its predecessors IEH2-4096 and IEH3-4096 in terms of installation space.
You might also be interested in
Faulhaber: neue Vertriebsgesellschaft in Italien
Antriebsspezialist Faulhaber plant für den 1. Januar 2019 die offizielle Eröffnung seiner neuen Vertriebsgesellschaft Faulhaber Italia im nördlich von Mailand gelegenen Lomazzo.

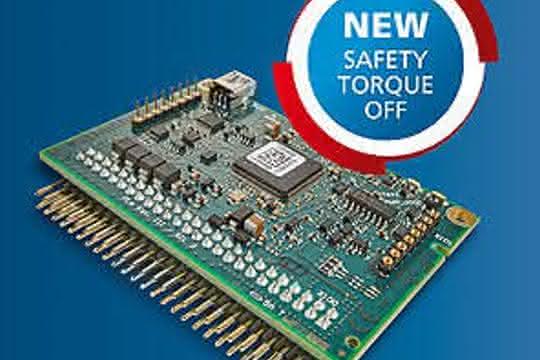

read more...Motion Controller mit STO-Abschaltung
