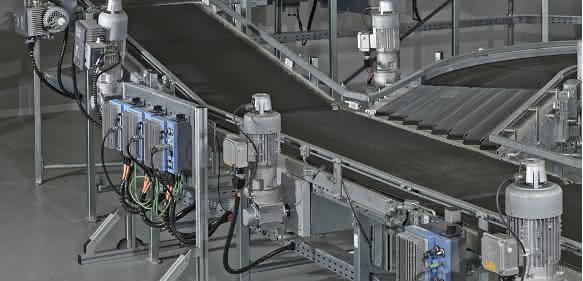

The new Nordac Link field distributor series has been specially optimized for conveyor technology. The drive control for flexible installation close to the motor is available as a frequency inverter (up to 7.5 kilowatts) and motor starter (up to three kilowatts) and offers fast commissioning, simple operation and maintenance, says Nord. This is achieved through a high degree of pluggability, which means that all modules, components and connections are joined together using simple plug-in connections. The field distributor can be freely configured for every requirement and application and can be integrated into all modern systems thanks to the integrated PLC and compatibility with all standard bus systems.

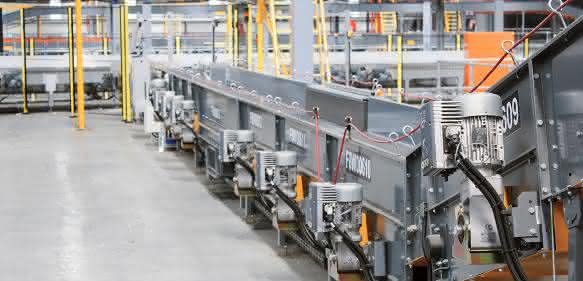

Logidrive drives consist of a two-stage bevel gearbox, an IE4 synchronous motor and a Nordac-Link field distributor - a coordinated drive system for intralogistics and airport applications. (Image: Nord)

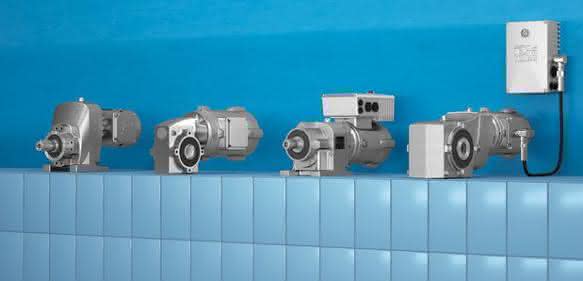

The operation of conveyor systems is characterized by frequent partial loads. It is precisely under these conditions that IE4 synchronous motors develop their full energy-saving potential. They achieve high cost reductions over their entire service life and a fast break-even point with only a small additional investment requirement. This makes the energy-efficient IE4 synchronous motors particularly suitable for reducing the total cost of ownership (TCO) of conveyor systems.

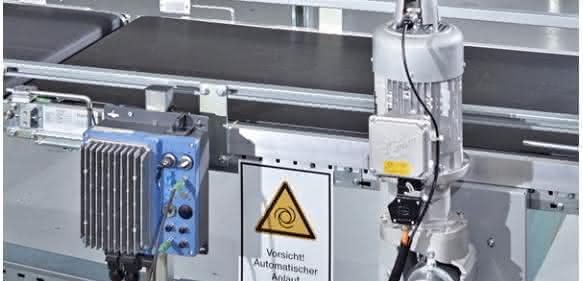

The new Nordac Link field distributor series is a drive control system for flexible installation close to the motor and is available as a frequency inverter and motor starter. (Image: Nord)

Reducing the number of variants can also significantly lower the total cost of ownership. Different gearbox and motor types, sizes, options and ratios often lead to a large number of drive variants - a not insignificant cost factor. Selected combinations of a highly efficient two-stage bevel gearbox, IE4 synchronous motor, power connector and pre-assembled cable ensure a significant reduction in the stock of spare parts. Thanks to plug-and-play technology, they are easy to service, boast a compact, space-saving design and weigh around 25 percent less than conventional solutions thanks to their lightweight aluminum housing. A perfectly matched drive system for intralogistics and airport applications is Logidrive - a standardized geared motor variant consisting of a two-stage Nordbloc.1 bevel gearbox, an energy-efficient IE4 synchronous motor and the Nordac Link SK 250E frequency inverter. as

Hall 3, Stand C17
