Tool holder systems
Polygon clamping technology for driven tools
Schunk only offers its Tribos polygon clamping technology for driven tools on lathes and rotary transfer machines.
According to Schunk, the polygonal chucks with ER taper can be combined with all commercially available holders for ER collets. Thanks to the Tribos holders, the tools can be preset in length with an accuracy of 0.01 mm and changed into the collet chucks in just a few simple steps. This minimizes set-up times and increases repeat accuracy. The polygonal chuck is available in two versions: The Tribos-Mini ER for micromachining is suitable for small shank diameters. It is available in sizes ER 11 (clamping diameter 1 mm to 4 mm) as well as ER 16, ER 20, ER 25 and ER 32 (clamping diameter 1 mm to 6 mm). The Tribos-RM ER was designed for volume machining in the high speed range. It is available in sizes ER 20 (clamping diameter 3 mm to 8 mm) as well as ER 25 and ER 32 (clamping diameter 3 mm to 12 mm).
You might also be interested in

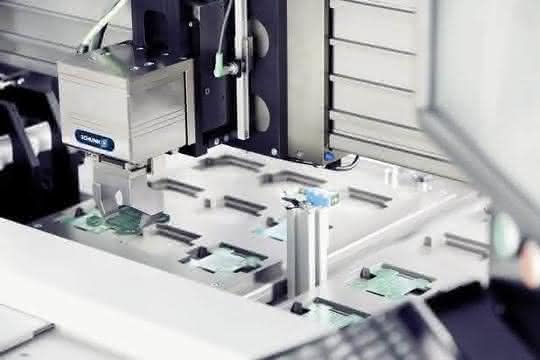

Greifer mit integrierter Profinet-Schnittstelle
Schunk präsentiert seinen intelligenten Greifer EGL mit integrierter Profinet-Schnittstelle. Laut Unternehmen ist es der erste weltweit nach der Kategorie C zertifizierte Universalgreifer mit dieser Schnittstelle.

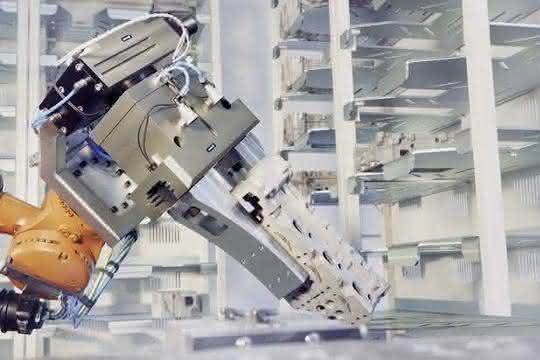

read more...ATEX-zertifizierter Greifer
