Processing in a confined space

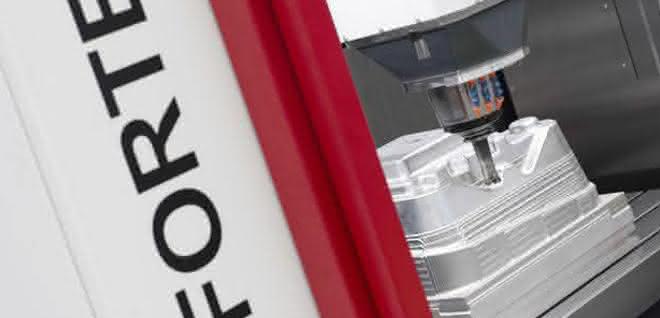

The machining centers in the Forte 65 series from Hedelius are three-axis machining centers with large traverse paths and a compact design. Thanks to their stability and performance, the machines are suitable for tool and mold making as well as general mechanical engineering and contract manufacturing.
For the two models in the Forte 65 series, Hedelius uses the proven concept of the Acura machines instead of a rotary swivel table with a fixed machine table. In the larger version, clamping weights of up to 2,000 kilograms are possible, while the smaller version can still handle 1,200 kilograms. The precision of the machining results from the special machine design; the distance between the main spindle and the guides of the Y and Z axes is constant over the entire travel range. The solidly ribbed feed slides made of gray cast iron reduce vibrations. The Z-axis is covered to protect against heat radiation and draughts. pb
