Three-point internal rapid probe: High-precision internal measurements on drill holes

Three-point internal rapid action switch

Andreas Mühlbauer / dsc, 11.10.2022, 11:51

High-precision internal measurements on drill holes

Feinmess Suhl has expanded its product range with the new 8480 three-point internal rapid probe. The probe has been specially developed for high-precision internal measurement of through and blind bores.

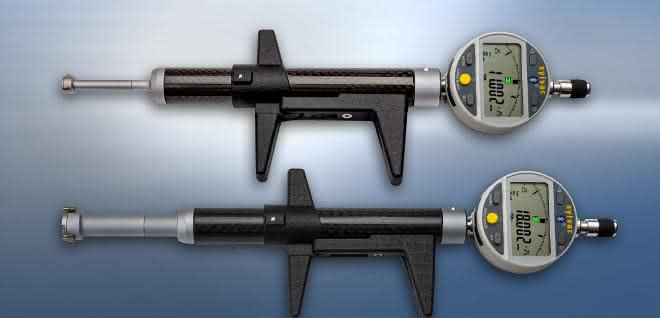

Three-point internal rapid action switch 8480

Feinmess Suhl has expanded its product range with the new 8480 three-point internal rapid probe. © Feimess Suhl

Its ergonomic handle unit, in combination with the mechanics in the probe head, enables highly accurate, reproducible measurements without backlash. Measurements in bores can be taken within a short time and at different positions. The probe has three titanium-coated measuring surfaces, which are arranged at a 120° angle to each other. The measurement is carried out by lifting the measuring surfaces using a lever.

The probe is equipped with a preset spring element that guarantees a defined measuring force. It also has a holder to which commercially available analog and digital dial gauges or precision indicators can be connected. The measuring accuracy is ±2 µm.
