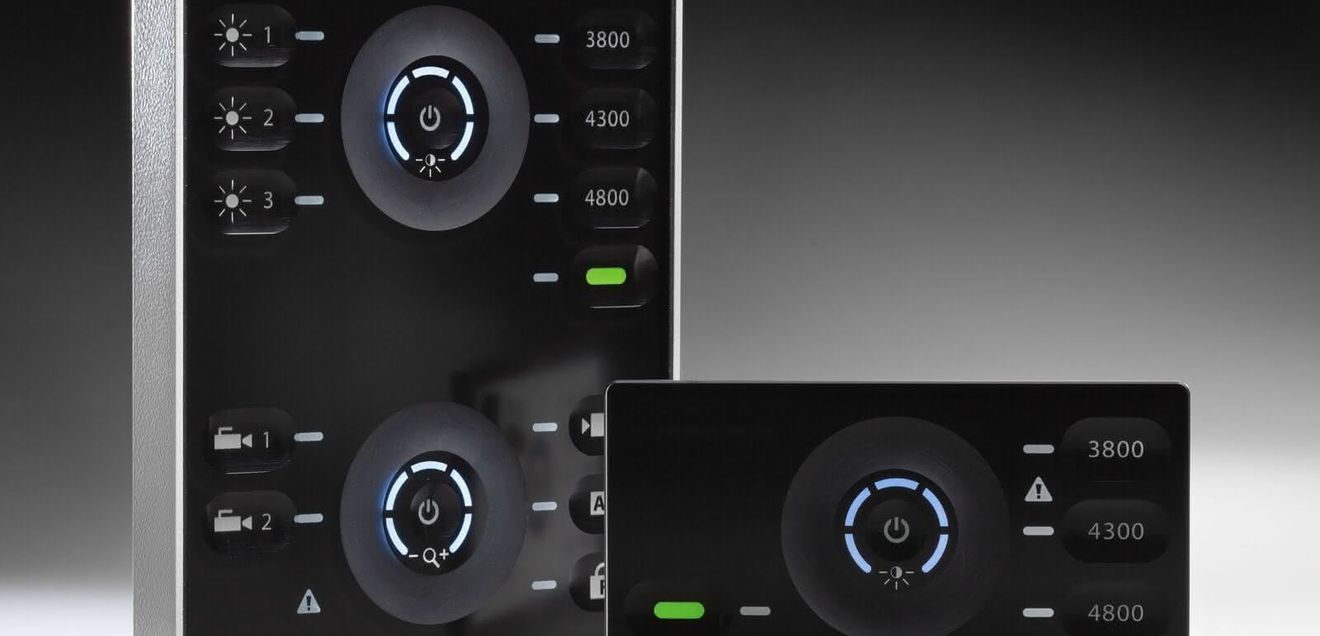

Intuitive HMIs
Tactile operating elements in glass
Glass-based, haptic, embedded touch HMIs from Irlbacher, the specialist for processing and functionalizing flat glass, enable intuitive user interfaces that do not require a display and therefore no language.
PCAP-based operating elements integrated into the glass, which can even be felt through gloves, replace controls and buttons, thus avoiding openings in the front panel. All production steps for the customized solutions are carried out in Germany. The haptic control elements can be either recessed or raised. Elements in the form of fingertips replace buttons and enable intuitive operation, as it is immediately recognizable where on the front an operation is to take place. Input devices in the form of sliders or encoders can also be simulated using this technology. Appropriately arranged LEDs or small alphanumeric displays show current setting values. By designing the backlighting and its individual scenes accordingly, operating procedures are intuitively understandable and clear even without a display. The microcontrollers used to evaluate the PCAP sensor signals offer sufficient computing power to embed customer applications partially or completely. In this case, special tools ensure that the customer's IP remains protected. This allows development tasks to be parallelized, shortening the time to market and reducing manufacturing costs. The integrated control system is so powerful that scenic backlighting can also be implemented.
This article appeared in issue 10/23
You might also be interested in
Dynamic safeguarding of assembly operations
The Bremen Institute of Structural Mechanics and Production Systems is developing a concept that aims to improve human-machine interaction within collaborative assembly scenarios using image-based hand recognition.
read more...Intuitive CNC HMIs with simulation functionality
With CNC HMI Base (TF5310) and CNC HMI Simulation Server (TF5320), the TwinCAT 3 automation software from Beckhoff offers two new function libraries for CNC-specific user interfaces, which can be used to create a modern, intuitive HMI application...

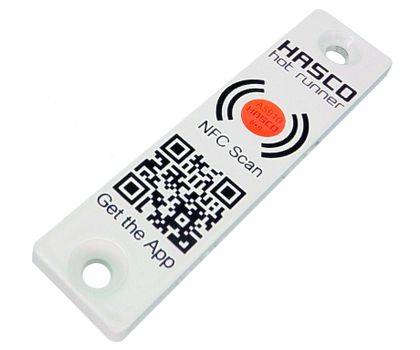

read more...Intelligent tool networking in a new form
Hasco hot runner is advancing digital networking in mold making: The proven RFID chip A5910/... is now integrated into a high-quality, printed aluminum plate and complements the hot runner systems in the form of the H1400/... nameplate as a helper.
read more...A different kind of status display
To realize an unusual status display for automation solutions, a manufacturer of plastic parts needed a flexible partner to implement the unusual idea - in this case a very special design of an RGB signal light.
read more...Smart process monitoring via LED
With Helulight Static Process, the Helukabel Group presents an intelligent lighting and signaling system for a wide range of industrial applications.
read more...Seamless inspection for flawless spot welds
Resistance welding involves extremes: in order to create reliable connections, very high currents and minimal movements must be controlled and monitored. Vitesco Technologies relies on TwinCAT Analytics from Beckhoff for seamless control of these...

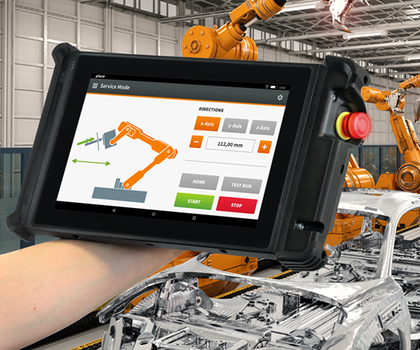

read more...Touch-based HMI series is presented
