Small nose, big effect

Plug holder

28.08.2018, 17:07

Small nose, big effect

Connectors are used as standard parts in assembly systems. Among other things, they are used to connect sensor cables that bring the signals to the control cabinet. The connector holders must securely fasten the connectors.

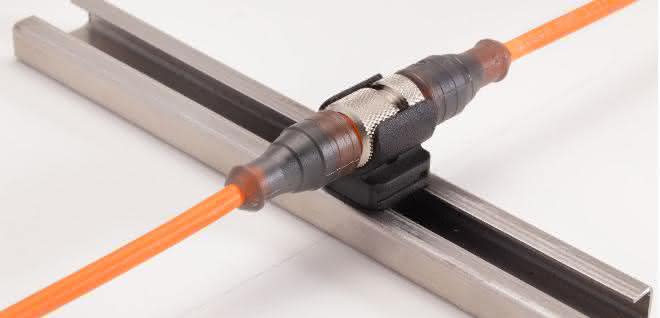

The new M12 plug holder with clamping foot can be used to attach plug connections to C11 rails. © Hebotec

The plug connectors can simply be pressed into the Hebotec holders from above. According to the manufacturer, the connector holders have a particularly good clamping force because they are shaped in such a way that they enclose the union nut of the connector particularly tightly. In addition, there are four "lugs" in the center of the holder that hook onto the union nut. This prevents the plug connection from coming loose from the holder under mechanical stress or being pulled through the holder in the longitudinal direction.

The M12 connector holder is available in two versions: for direct mounting and with a clamping foot for C11 rails. The M12 plug holder for direct mounting is optimized to be arranged in rows to save space. This is ensured by a groove on the base of the holder, through which any number of plug holders can be firmly plugged together.

The M12 plug holder with clamping foot can be used to attach plug connections to C11 rails. The clamping foot is made from a single piece together with the holder and can be inserted into the groove of C11 rails without tools by turning it 90 degrees. as

Hall 8, Stand 8306
