Embedded boards
Long-term availability and fanless

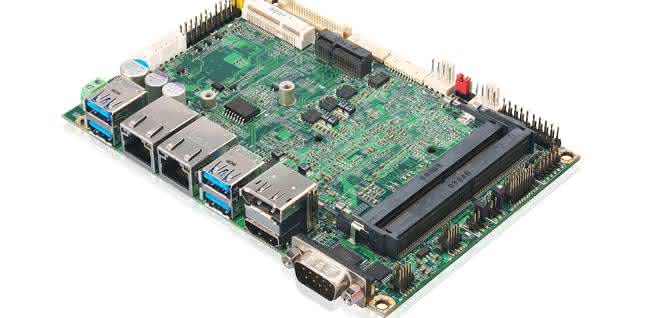

The 3.5-inch embedded board LE-37N from Spectra is equipped with the Intel Whiskey Lake Core i7-8565UE processor, which is available until at least 2027.
It is supported by two DDR4 memories, which can be expanded up to 32 Gbytes. Mass storage devices can be connected via two SATA ports, and the low TDP value of 15 W allows the construction of compact and fanless embedded systems. High graphics performance is ensured by the Intel Generation 9.5 HD Graphics GPU, which enables the connection of up to three independent displays in 4K quality via LVDS, HDMI and DP port.
External peripherals can be connected via four USB 3.1 Gen 2 ports and four USB 2.0 ports. Two Gigabit Ethernet ports are available for wired network connections. Functions such as Wi-Fi or Bluetooth can be easily retrofitted thanks to an M.2 2230 slot. The input voltage range is specified as 9 to 35 V(DC) and the operating temperature as 0 to 60 °C.
