5-axis machining center
Flexible workpiece handling for larger components

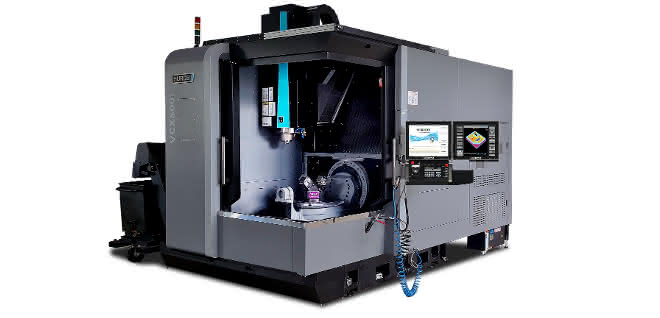

The VCX600i XP 5-axis machining center is a completely newly developed machine whose design is based on Hurco's entire expertise in the 5-axis sector. As a result, the machine offers sustainable improvements in performance, stability and accuracy compared to the previous 5-axis models.
The VCX600i XP is aimed at users who work exclusively in the 5-axis range and primarily produce medium-sized parts. The SK-40 spindle can access performance data of up to 16 kW, 102 Nm and 12,000 rpm; the tool magazine has space for 40 tools. With a separately opening roof for crane loading, the workpiece handling of larger components is flexible.
At the same time, the machine has a very solid design. Equipped with a rotary-swivel table and a traveling column arranged behind it, the VCX600i XP moves fewer axes in the compound, which increases accuracy mechanically alone. The swivel bridge is embedded in the bed and does not move in the room, which has a positive effect as the component size or mass increases. The bridge and swivel table are equipped with torque drives so that they are 100 percent 5-axis simultaneous capable - highly dynamic even in continuous operation.
Sebastian Herr, Head of Application Technology at Hurco: "With the VCX600i XP, we are starting from pole position in the field of 5-axis machining centers. It is designed for high-precision and dynamic machining. This is our response to the fact that increasingly complex and precise components need to be produced."
