Know-howFeeding of belts
Working from a conveyor belt is an efficient method of producing components from sheet metal directly on site, i.e. on an assembly machine. For parts with complicated shapes, this eliminates the often expensive handling process of "arranging".
Page [1 of 4]
 | | | Image 1 of 4 | | | |

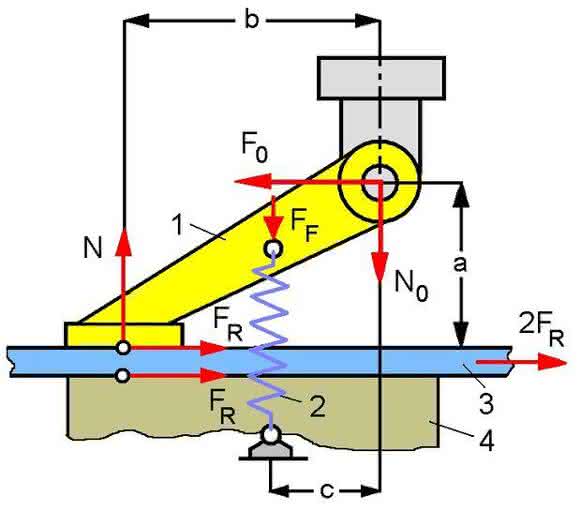

Figure 1: Clamping plate feed. 1 lever arm, 2 tension spring, 3 belt material, 4 contact surface, FF spring force, FR frictional force, N normal force.
