CAD software for sheet metal processingTin tree of knowledge
For the process chain in forming technology, software from SPI provides, among other things, a production-ready step file and GEO data including bending markings. An art project makes full use of the possibilities of SPI SheetMetalWorks software.
Page [4 of 5]
 | | | Image 4 of 5 | | | |

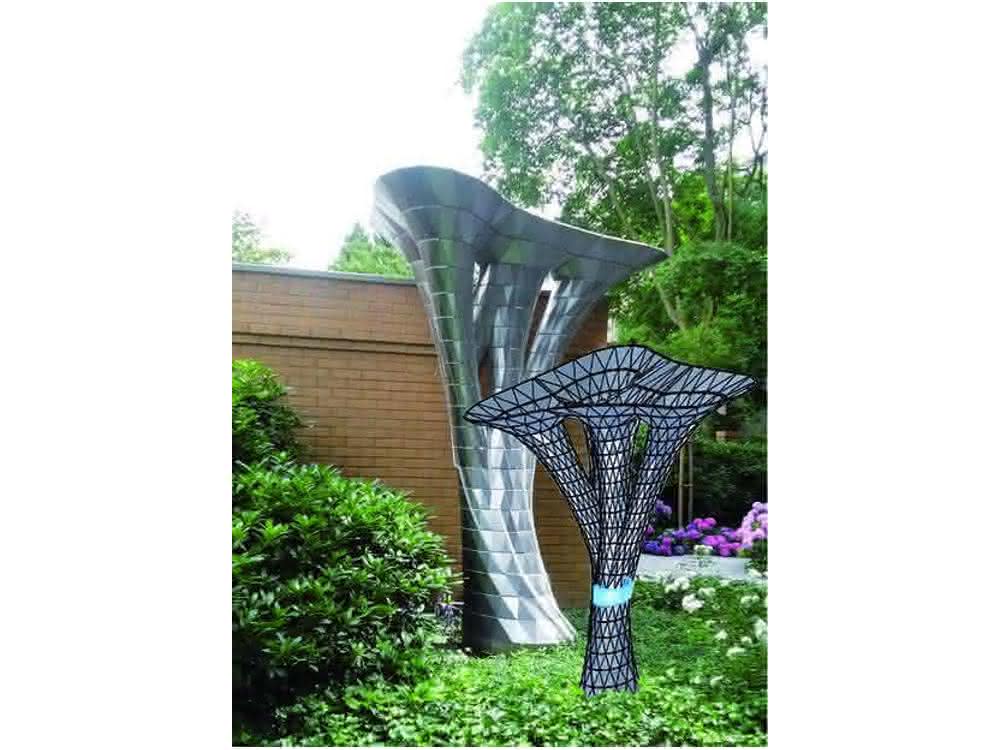

Art on the tree: steel tree and Solidworks assembly (assembly). With the help of SPI SheetMetalWorks, the individual parts could be loaded quickly and provided with the manufacturing information required for production. The workshop drawings including bending tables were created in just a few steps and geo-files including bending markings for the laser cutting center were created in the same operation. © SPI
