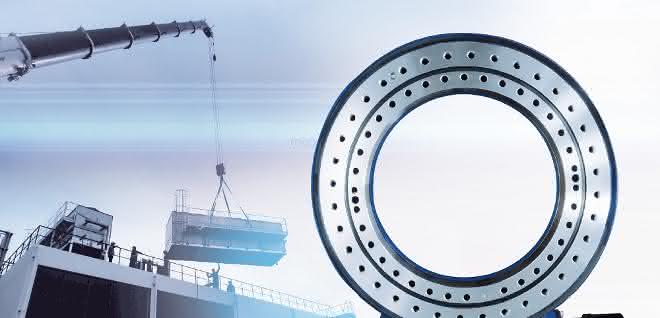

Swivel drives
Protected and ready to install
With its quarter-turn actuators, Rodriguez offers ready-to-install assemblies with housing and seal as well as an optional electric or hydraulic drive. Users benefit from low assembly and maintenance costs. The quarter-turn actuators can be individually adapted to specific customer requirements, are immediately available from stock and are currently available in three sizes.
The housing, ball slewing ring and drive worms are matched to each other in the ready-to-install solutions. The Rodriguez slew drives ensure optimum transmission of forces and high torques in a closed unit with a long service life and high reliability. They are available in common standard dimensions and many motor connections and can be easily integrated into existing applications.
The slew drives are characterized by a particularly flat design and are therefore suitable for applications where only limited installation space is available. They support high torques and can also be used in performance-critical applications and heavy-duty applications. Slew drives are often installed in aerial work platforms, municipal mowing vehicles and smaller ship cranes, among other things.
The modular design of the slewing drives guarantees a high degree of flexibility. Suitable brakes and sensors for position feedback are also available. On request, the company can adapt the slew drives to customer-specific applications: Among other things, the components can be reinforced, the drives modified or equipped with additional measurement technology. The individual slew drives are available from small quantities.
You might also be interested in

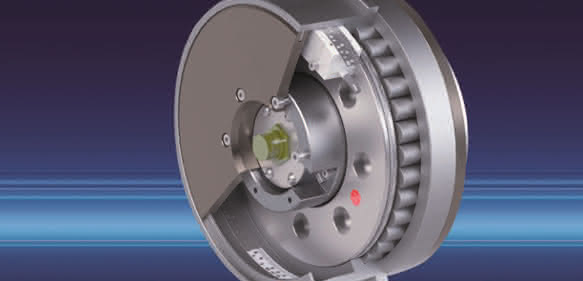

Axial-Radial-Zylinderrollenlager
