New transfer for lighter goods

Conveyor system

25.09.2019, 14:28

New transfer for lighter goods

The Versaflex hinged belt conveyor system, formerly a plastic chain conveyor from E-M-M-A, has a modular design. Thanks to the standardized modules, it can be easily and cost-effectively integrated, adapted and expanded into any production process, according to mk.

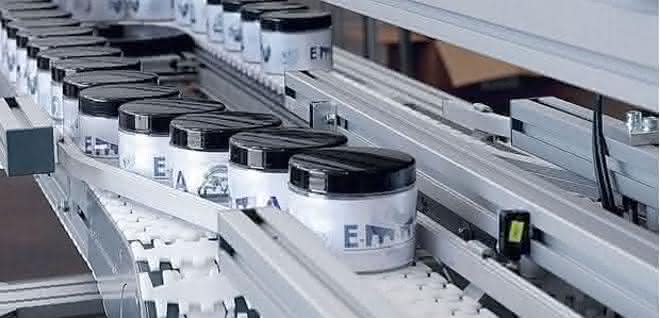

The Versaflex hinged belt conveyor system is based on a modular design. © mk

It is also compatible with existing systems on the market. The system is particularly suitable for transporting primary and secondary packaged products from the food, pharmaceutical, chemical and consumer goods industries, for example, but also for transporting workpiece carriers in assembly lines in the automotive industry and for interlinking machines in the manufacturing industry. Thanks to the single-track design and curve radii from 160 millimetres, complex routes can be mapped in confined spaces. The chain runs on low-wear slide rails and can be operated with just one drive at speeds of max. 50 meters per minute. System lengths of up to 40 meters can be implemented at continuous temperatures between minus 20 and plus 60 degrees Celsius. as

Hall 3, Stand 3323
