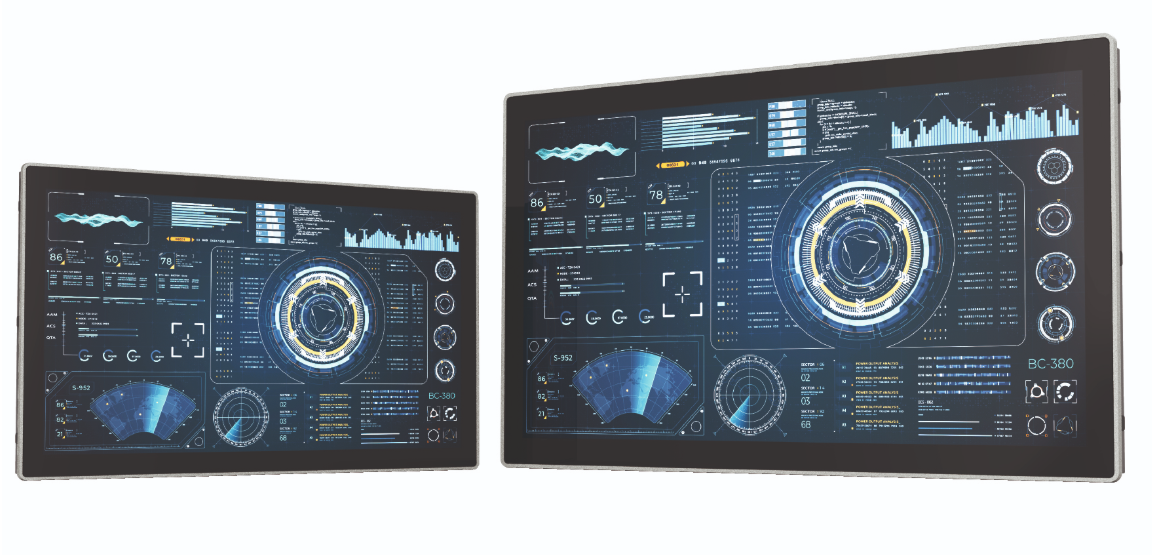

The series' design, which is consistently geared towards integration, is striking. With a slim bezel design and a frame width of less than three millimetres, the displays can be integrated almost seamlessly into modern machine concepts. The design not only focuses on functionality, but also on a contemporary, high-quality appearance. At the same time, mechanical compatibility with existing installation cut-outs is maintained. This makes both replacing and retrofitting existing systems much easier.

In terms of technology, the CV-200 series relies on full HD resolution and a large viewing angle of 178 degrees, which enables a consistent image display from different perspectives. Operation is via projected capacitive multi-touch technology, which supports precise and fast interaction. This is complemented by an anti-reflective surface that reduces reflections and improves readability even in unfavorable lighting conditions.

The devices are designed to be robust enough for use in industrial environments. The front complies with protection class IP66 and is therefore protected against dust and strong water jets. A glass surface with 7H hardness ensures high scratch resistance. In addition, the so-called wet touch function enables reliable operation even in damp conditions. The high EMC resistance in turn supports stable operation even under electromagnetic conditions.

A key feature of the series is its modular concept. In future, the displays will be available in sizes from 10 to 21.5 inches and can be flexibly adapted to different requirements. This makes them suitable both as stand-alone industrial monitors and for use in integrated panel PC systems. The series will initially be launched with a 21.5-inch display. Other sizes will gradually follow in the coming months.

All in all, the CV-200 series combines a reduced, modern design with industrial robustness and high adaptability. According to the manufacturer, it therefore addresses the increasing requirements for visualization solutions in automation technology.
