Less maintenance, better delivery
Update for the powerhouse
Tox Pressotechnik has expanded its Tox-Kraftpaket line-X series, the company's pneumohydraulic press force drive cylinders, and at the same time optimized its product range.
Based on the performance of more than 150,000 units installed worldwide, the series with air spring (instead of the mechanical spring for the return stroke) has undergone an extensive update. The aim was to increase performance, reduce maintenance costs and optimize delivery capability by streamlining the product range.

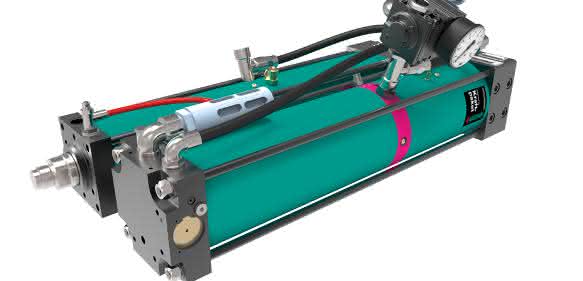

The new line-X power packs are available as type X-S (slim design), type X-K (compact design) and also as a separate Tox power pack X-KT pneumohydraulic unit. Air spring, power stroke valve and fast stroke support are already integrated. New features include an air spring pressure regulator with maximum air throughput for optimized cycle times, a ZVL distribution bar including an Oder valve for continuous pressure generation and an Oder valve for fast stroke support. Three pneumatic connections are now required for the forward stroke, return stroke and permanent supply functions. In addition, all line-X drive cylinders are equipped with dynamic pressure control (control throttle X).
Optional control variants such as pressure regulator in the power stroke line, external power stroke activation or external power stroke release are possible. In the event of service/repair, the pressure regulator and Oder valve can be easily replaced on site. According to the manufacturer, the new power packs ensure increased fast lifting forces and increased lifting speed, along with minimized maintenance/repair costs. In addition, the drive cylinders are easy to control and regulate, making them simple to integrate into workstations and sub-systems or complete systems. The manufacturer guarantees all power packs without shift limitation for ten million strokes over a period of twelve months. as
